Wipers And Washers Control Switch
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

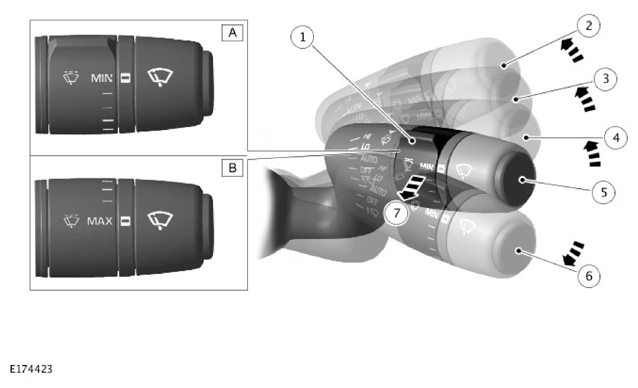

| ITEM | DESCRIPTION |
|---|---|
| A | Rain/light sensor minimum sensitivity |
| B | Rain/light sensor maximum sensitivity |
| 1 | Windshield wiper intermittent switch |
| 2 | Fast wipe position |
| 3 | Slow wipe position |
| 4 | Auto/intermittent wipe position |
| 5 | Off position |
| 6 | Flick wipe position |
| 7 | Windshield wash/wipe position |
The windshield wiper functions are controlled by the driver using the wipers and washers control switch. The control switch is part of the Steering Wheel Module (SWM) located on the steering column.
The outputs from the switches are converted to LIN bus signals by the SWM and transmitted to the BCM/GWM assembly. The BCM/GWM assembly processes the LIN bus signals and activates the selected function directly, or via relays located in the left and right EJB.
