Headlamp Washer Jets (If Equipped)

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

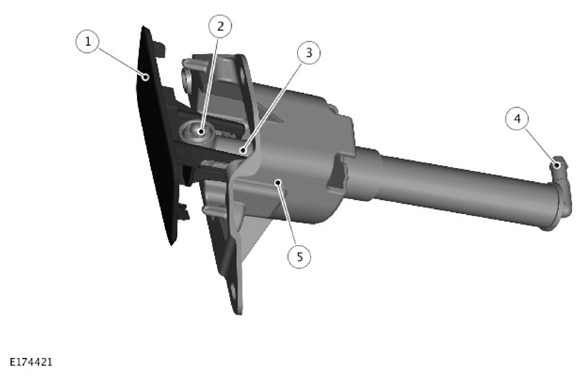

ITEM	DESCRIPTION
1	Washer jet trim panel
2	Washer jet
3	Telescopic arm
4	Washer fluid supply hose connection
5	Washer jet housing

NOTE: The headlamp washers will only operate if the vehicle headlamps are on.

The front bumper is equipped with two headlamp washer jets. The headlamp washer jets are located in the bumper, below the headlamp assembly. The headlamp washer jet is located in an aperture at the front of the bumper and secured with three self-tapping screws to a bracket molded into the bumper structure.

The headlamp washer jets are telescopic units which extend forward from the bumper under washer fluid pressure supplied by the headlamp washer pump. When the washer fluid pressure decreases the headlamp washer jet is automatically retracted back into the housing. The outer end of the headlamp washer jet is equipped with a trim which blends into the bumper when it is not operating. Each headlamp washer jet directs washer fluid under pressure onto the headlamp lens when the headlamp washer is extended.
