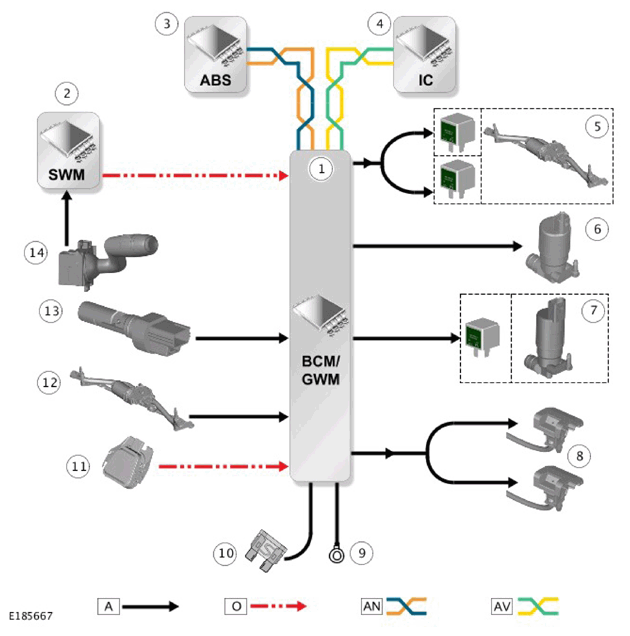

Control Diagram
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARD WIRED; O = LOCAL INTERCONNECT NETWORK (LIN) BUS; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS; AV = HS CAN COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Steering Wheel Module (SWM) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Instrument Cluster (IC) |
| 5 | Windshield wiper motor |
| 6 | Windshield washer pump |
| 7 | Headlamp washer pump |
| 8 | Heated washer jets (if equipped) |
| 9 | Ground |
| 10 | Power supply |
| 11 | Rain/light sensor |
| 12 | Windshield wiper motor-park signal |
| 13 | Washer fluid level sensor |
| 14 | Wipers and washers control switch |
