Brake Caliper : Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

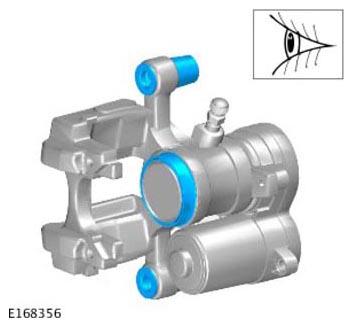

Inspect the caliper piston and slide pin seals for damage.
CAUTION: Make sure that the brake hose is not twisted and is correctly located.

To install, reverse the removal procedure.
Bleed the brake system.
Refer to: BRAKE SYSTEM BLEEDING
Calibrate the electric parking brake (EPB) using the diagnostic tool.
NOTE: This step is only required if the diagnostic tool is not available.

Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
NOTE: This step is only required if the vehicle has no battery power.

Refer to: ELECTRIC PARK BRAKE RELEASE WHEN THE VEHICLE HAS NO ELECTRICAL POWER
