Secondary Bulkhead Left Panel - TDV6 3.0L Diesel (G1879661): Removal

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING (G1822256)
Remove the RH secondary bulkhead panel.
Refer to: SECONDARY BULKHEAD RIGHT PANEL - TDV6 3.0L DIESEL

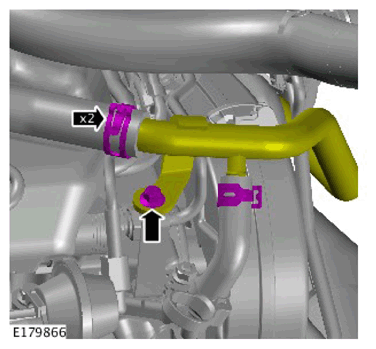

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 55 Nm

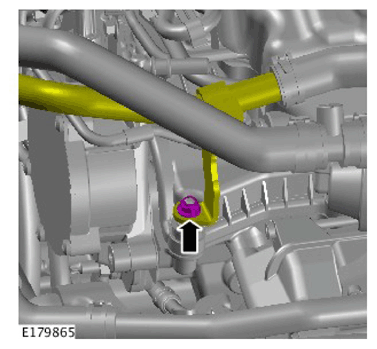

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the fuel filter.
Refer to: FUEL FILTER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
