Front Wheel Arch Liner (G2402289): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 screws.
- Release the front section of the front wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

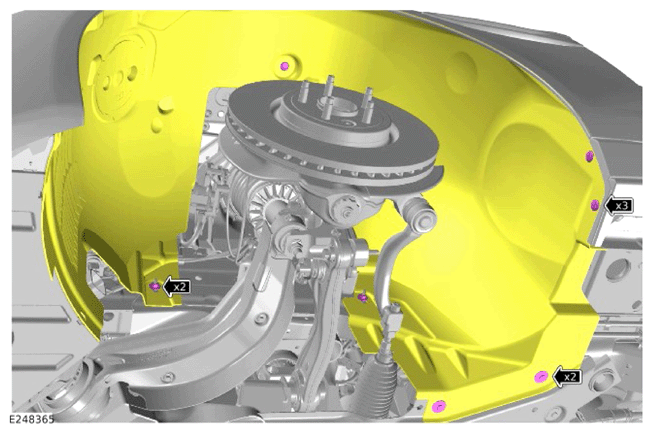

- Remove the 2 nuts.
- Remove the 2 bolts.
- Remove the 3 fasteners.
- Release the rear section of the front wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front wheel arch liner.
