Front CROSSMEMBER (G1798792): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: HEADLAMP ASSEMBLY

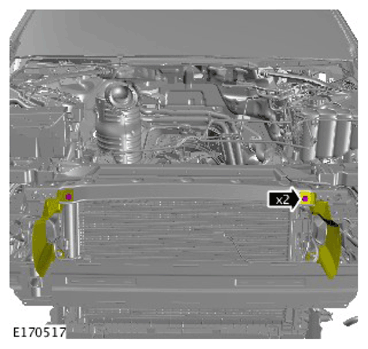

  2. G11311518Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

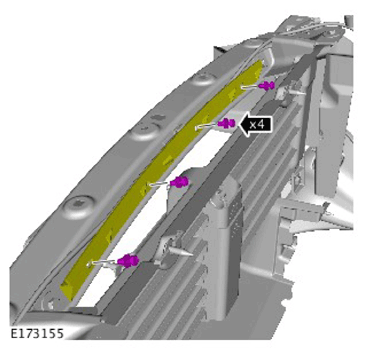

  3. G11311519Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

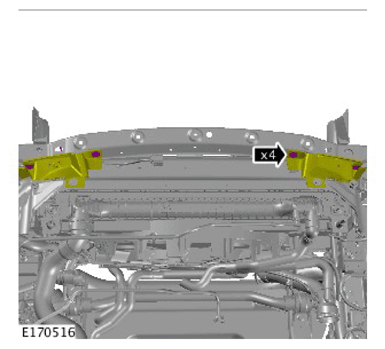

  4. G11311520Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

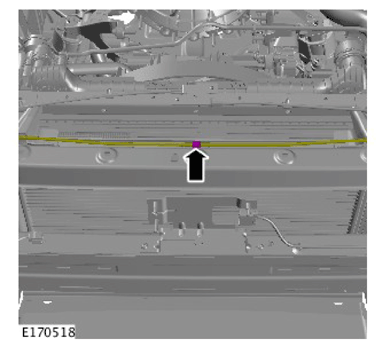

  5. G11311521Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

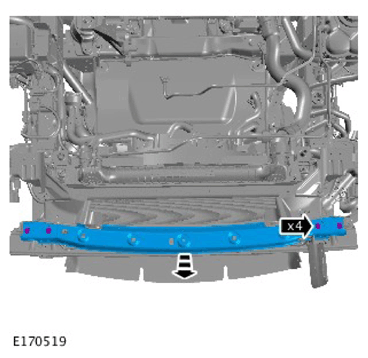

  6. G11311522Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 25 Nm
