Fender (G1823028): Removal

CAUTION: Care must be taken to avoid damaging the surrounding paintwork.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the headlamp assembly.
Refer to: HEADLAMP ASSEMBLY
Remove the front fender moulding.
Refer to: FRONT FENDER MOULDING
Remove the rocker panel moulding.
Refer to: ROCKER PANEL MOULDING
Remove the wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the windshield moulding.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Remove the clip.

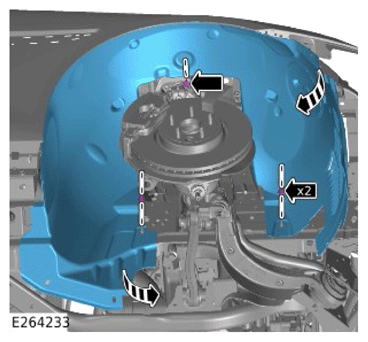

- Remove the front wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front right fender.
