Coolant Expansion Tank (G2195940): Installation

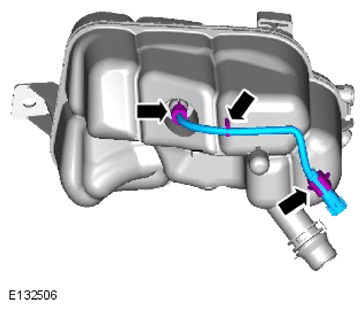

  1. G13895019Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the engine coolant level sensor and harness.

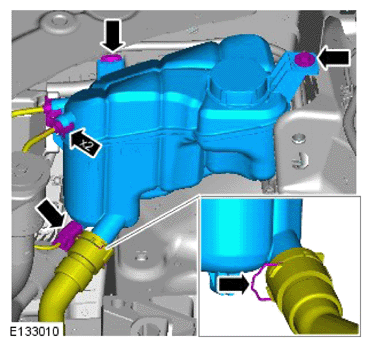

  2. G13895018Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the coolant expansion tank.
    • Connect the coolant pipes and the coolant hose.
    • Connect the electrical connector.
    • Install the coolant expansion tank retaining bolt.

      Torque: 5 Nm

  3. Install the engine upper support insulator.

    Refer to: ENGINE UPPER SUPPORT INSULATOR .

    Refer to: Engine - INGENIUM I4 2.0L Diesel, Removal and Installation - ENGINE UPPER SUPPORT INSULATOR.

  4. Fill the coolant expansion tank with engine coolant.
  5. CAUTION: Correct installation of the coolant expansion tank cap can be obtained by tightening the cap until an audible click is heard.

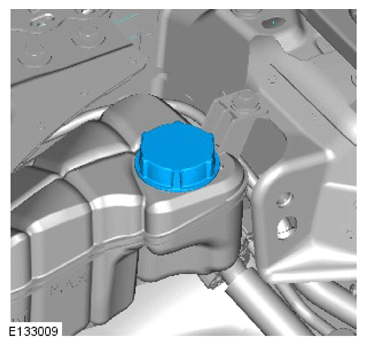

    G13895017Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the coolant expansion tank filler cap.
