Brake Pedal And Bracket (G2172298): Removal

The following step(s) applies to:

All vehicles

1. Remove the instrument panel lower trim panel.

   Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .

2. Remove the accelerator pedal.

   Refer to: ACCELERATOR PEDAL .

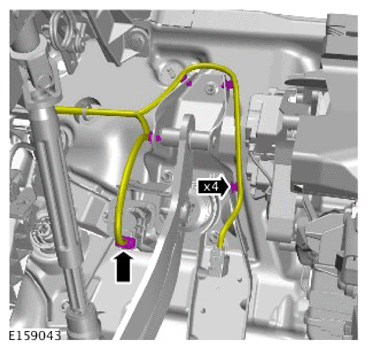

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Disconnect and release the wiring harness.

   The following step(s) applies to:

   Left-hand drive vehicles

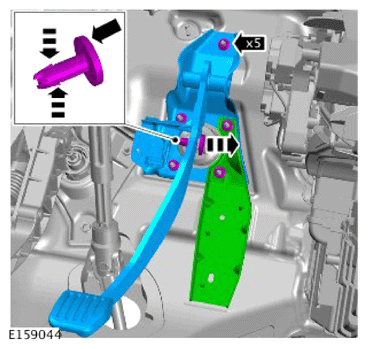

4. NOTE: Make sure that the plastic pin is discarded.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the brake pedal assembly.

   The following step(s) applies to:

   Right-hand drive vehicles

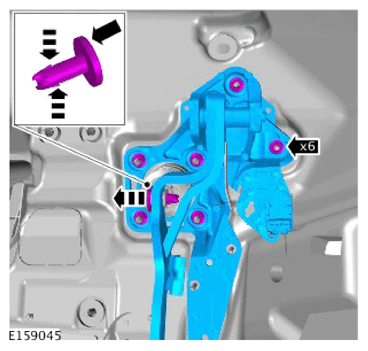

5. NOTE: Make sure that the plastic pin is discarded.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Remove the brake pedal assembly.

   The following step(s) applies to:

   All vehicles

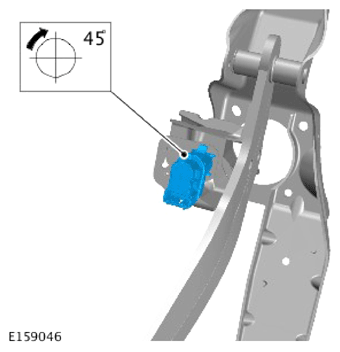

6. NOTE:

   • Only carry out the following step(s) if a new component is to be installed.
   • This step contains illustration for left hand drive vehicles, right hand drive vehicles are similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the brake pedal switch.
