Tire Pressure Monitoring System Rear Antenna (G1296088): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.
  • RH illustration shown, LH is similar.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Remove the rear wheel and tire.

    Refer to: WHEEL AND TIRE (G1029140)

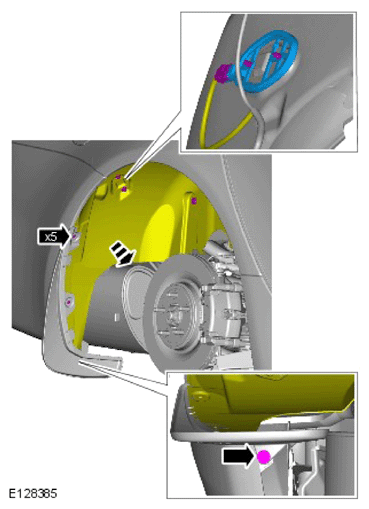

  3. G14013772Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 1.5 Nm

  4. G11283969Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
