Tire Pressure MONITORI No System Receiver (G2171223): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.
  1. Refer to: HEADLINER (G1267476)

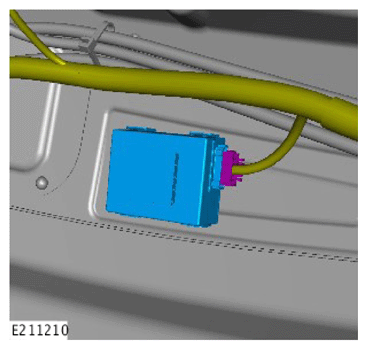

  2. CAUTION: Make sure that the component is secured in the retainer.
    G14013778Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the component first, before disconnecting the electrical connector.
