Rear Toe Adjustment (G1273290)

CAUTION:

LH illustration shown, RH is similar.
Make sure the vehicle is on a flat level surface.
Make sure the tire pressures are within specification.
Make sure that only the manufacturers' recommended four wheel alignment equipment is used.
Make sure the steering wheel is in the straight ahead position.

For wheel alignment information, refer to the suspension specification article. For additional information, Refer to: SPECIFICATIONS
Check the tie rod ends, suspension joints, wheel bearings and wheels and tires for damage, wear and free play.
- Adjust or repair any worn, damaged or incorrectly adjusted components.
Check and adjust tire pressures.
Position the vehicle on a calibrated, level, vehicle lift.
Release the vehicle parking brake.
For additional information, Refer to: AIR SUSPENSION MANUAL TIGHT TOLERANCE SETTING MODE
Using only four-wheel alignment equipment approved by Jaguar, check the wheel alignment.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

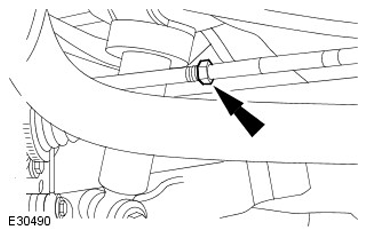

To adjust, loosen the toe link locknuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

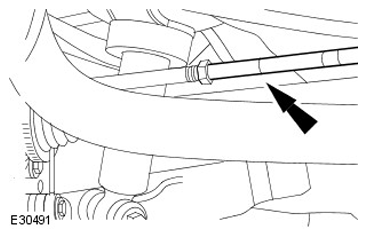

Adjust the rear toe.
NOTE: Use an additional wrench to prevent the component from rotating.

Tighten the toe link locknuts to 55 Nm (40 lb.ft).
Using only four-wheel alignment equipment approved by Jaguar, check the wheel alignment.
