Front Wheel Bearing And Wheel Hub RUNOUT Check - Vehicles With: High Performance Brakes (G1516034)

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
RH illustration shown, LH similar.

WARNING: Make sure to support the vehicle with axle stands.

Raise the front of the vehicle.
Remove the front wheel. For additional information, Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

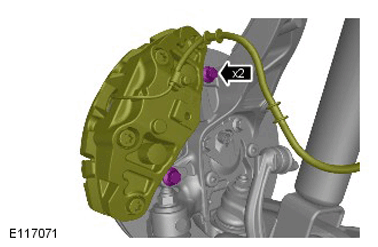

Remove the 2 brake caliper support bolts.
- Push the brake pads back to release the brake caliper from the disc.
- Detach the brake caliper and position to one side with suitable tie strap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the disc.
- Remove the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Mount special tool 100-053 on the lower caliper support bracket as shown.
- A spacer washer may be required under the tool.
- Use the brake caliper support bolt and suitable nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

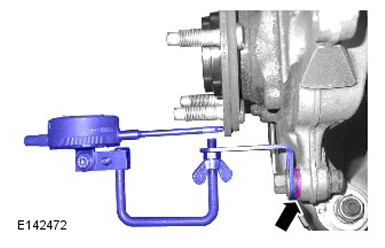

Position the Dial Test Indicator (DTI) gauge probe on the hub flange as shown.
Zero DTI and rotate the hub one complete revolution to measure hub runout. hub runout must not exceed 0.015 mm.
If the hub runout exceeds the limit, install a new hub and bearing. For additional information, Refer to: FRONT WHEEL BEARING AND WHEEL HUB - AWD
If the hub runout is within the limit install the removed components.
Tighten the brake support caliper bolts to 115 Nm.
