Four Wheel Alignment (G1887675)

CAUTION:

Make sure the vehicle is on a flat level surface.
Make sure the tire pressures are within specification.
Make sure that only the manufacturers' recommended four wheel alignment equipment is used.
Make sure the steering wheel is in the straight ahead position.
Adjustments made to the camber setting will affect the front toe setting. Therefore, the camber and toe may need to be adjusted at the same time.
LH illustration shown, RH is similar.

NOTE: Adjustments to the caster will affect the toe settings. Therefore, the caster and toe may need to be adjusted at the same time to achieve the correct settings.

For wheel alignment information, refer to the suspension specification article. For additional information, Refer to: SPECIFICATIONS
Check the tie rod ends, suspension joints, wheel bearings and wheels and tires for damage, wear and free play.
- Adjust or repair any worn, damaged or incorrectly adjusted components.
Check and adjust tire pressures.
Position the vehicle on a calibrated, level, vehicle lift.
Release the vehicle parking brake.
For additional information, Refer to: AIR SUSPENSION MANUAL TIGHT TOLERANCE SETTING MODE
Using only four-wheel alignment equipment approved by Jaguar, check the wheel alignment.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

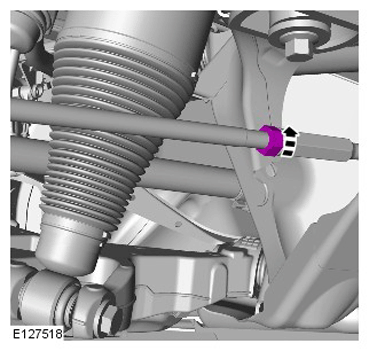

Adjust the rear toe.
- To adjust, loosen the toe link locknuts.
CAUTION: Do not allow the gaiter to twist.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

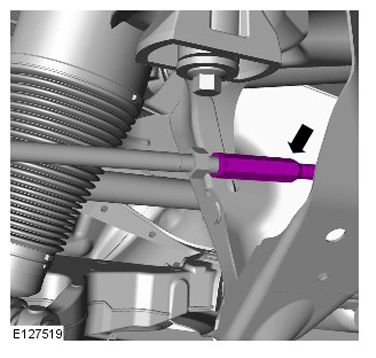

Adjust the rear toe.
NOTE: Use an additional wrench to prevent the component from rotating.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the toe link locknuts to 55 Nm (40 lb.ft).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

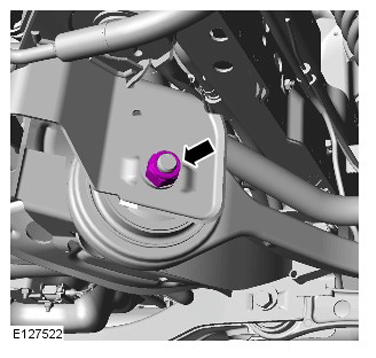

To adjust the caster, loosen the front lower arm lock nuts.
- Loosen, but do not fully remove the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

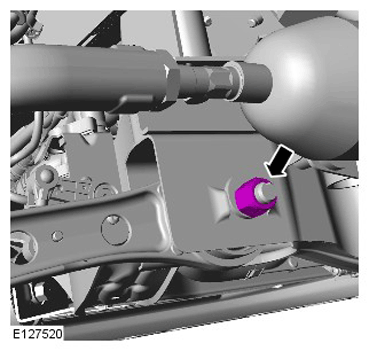

Rotate the caster adjustment cam bolt.
CAUTION: Make sure the caster adjustment bolt does not rotate while the lock nut is being tightened.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the caster adjustment cam bolt nut.
- Tighten the nut and bolt to 175 Nm (129 lb.ft).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

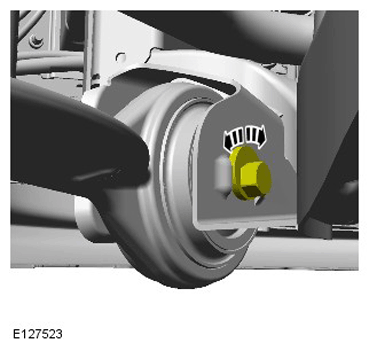

To adjust the camber, loosen the rear lower arm lock nuts.
- Loosen, but do not fully remove the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

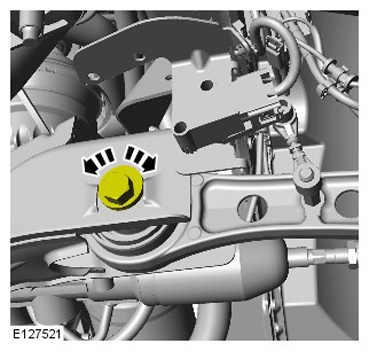

Rotate the camber adjustment cam bolt.
CAUTION: Make sure the camber adjustment bolt does not rotate while the lock nut is being tightened.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the camber adjustment cam bolt nut.
- Tighten the nut and bolt to 175 Nm (129 lb.ft).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

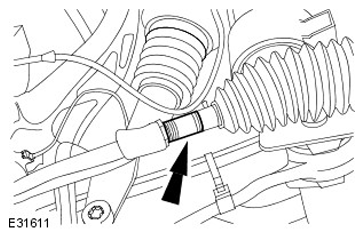

Check the front toe adjustment.
- To adjust, loosen the tie rod end lock nuts.
CAUTION: Do not allow the gaiter to twist.

NOTE: Both tie rods must be rotated by an equal amount.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

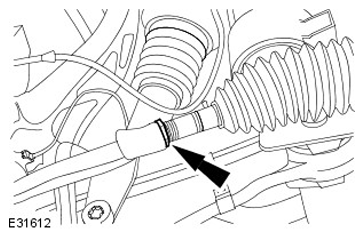

Adjust the front toe.
Tighten the tie rod end lock nuts to 75 Nm.
Using only four-wheel alignment equipment approved by Jaguar, check the wheel alignment.
