Control Arm Graphics [Front Suspension]

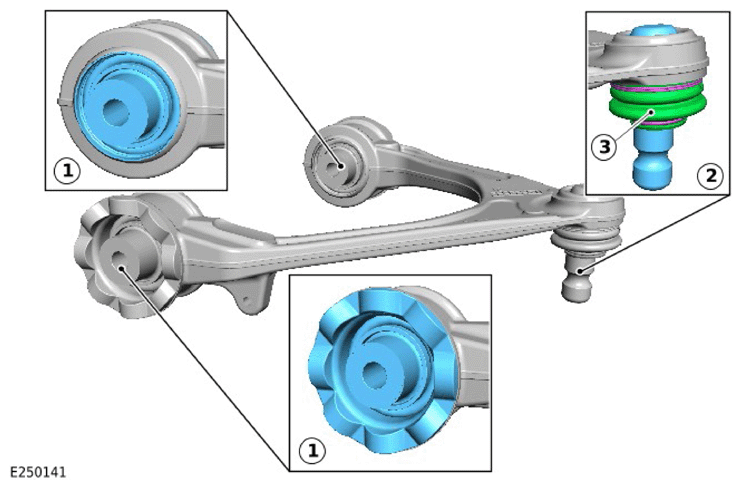

Upper Control Arm

G13877794Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CALL OUT COMPONENT NAME
1. Bush
2. Ball Joint
3. Boot

Front Lower Control Arm

G13920227Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CALL OUT COMPONENT NAME
1. Bush
2. Ball Joint
3. Boot

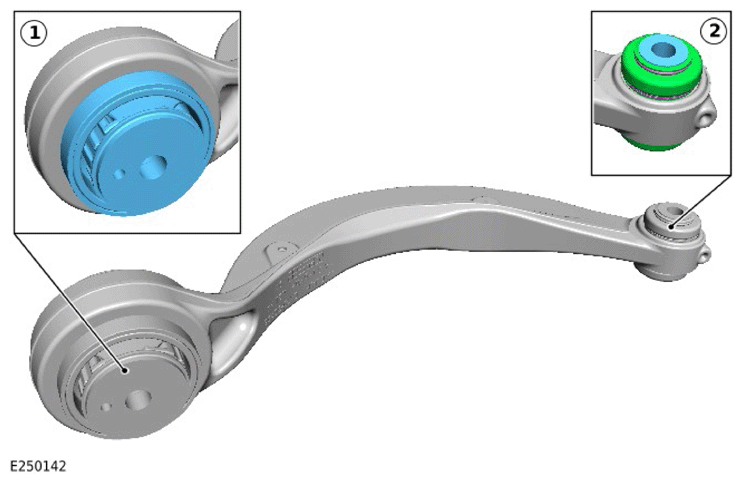

Rear Lower Control Arm

G13877795Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CALL OUT COMPONENT NAME
1. Bush
2. Ball Joint
