Upper Arm (G1274518): Removal

CAUTION: The final tightening of the suspension components must be carried out with the vehicle on its wheels.

NOTE:

Raise and lower the vehicle on a 4 post ramp.
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: WHEEL AND TIRE
Refer to: SHOCK ABSORBER AND SPRING ASSEMBLY
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

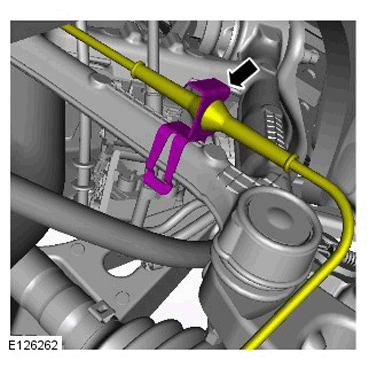

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fluids.
- Make sure that the area around the component is clean and free of foreign material.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

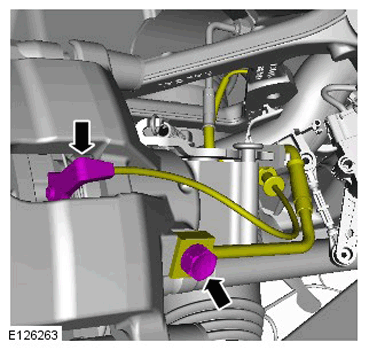

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 38 Nm
NOTE: Discard the nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Upper control arm nut(s) Quantity: 1 .

Torque

Non XJR version only: 96 Nm

XJR version only

Stage 1: 48 Nm

Stage 2: 60 °

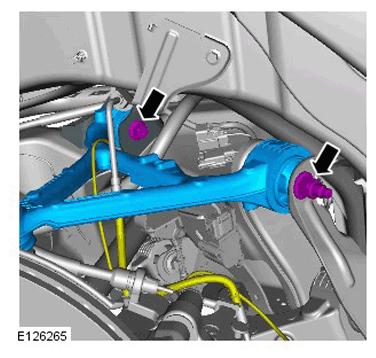

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 115 Nm
