Shock Absorber And Spring Assembly (G1274519): Removal

CAUTION: The final tightening of the suspension components must be carried out with the vehicle on its wheels.

NOTE:

Removal steps in this procedure may contain installation details.
RH illustration shown, LH is similar.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE
Refer to: RIGHT LOADSPACE TRIM PANEL
Refer to: LEFT LOADSPACE TRIM PANEL
Refer to: WHEEL AND TIRE
CAUTION: Using a suitable blanking plug, blank off the end of the air pipe to prevent dirt ingress.

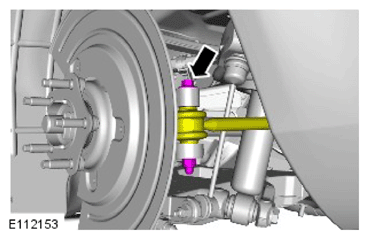

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Discard the air line connector.

Refer to: AIR LINE CONNECTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Mark the components to aid installation.
- Note the fitted position of the component prior to removal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
