Rear Wheel Bearing (G1274507): Removal

CAUTION:

The final tightening of the suspension components must be completed with the vehicle on its wheels.
LH illustration shown, RH is similar.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Raise and lower the vehicle on a 4 post ramp.
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the halfshaft nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the brake caliper carrier bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 205-491-1, 205-491, 204-269
NOTE:
- Use an additional wrench to prevent the component from rotating.
- Discard the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Upper control arm nut(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

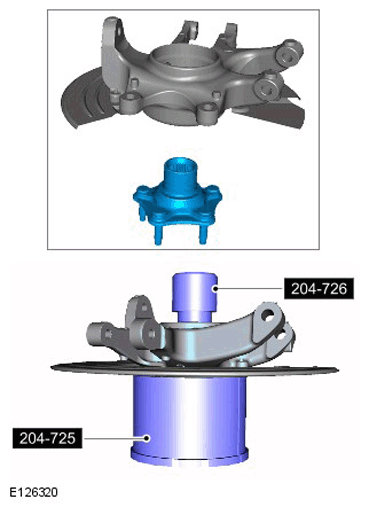

Special Tool(s): 204-726, 204-725
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

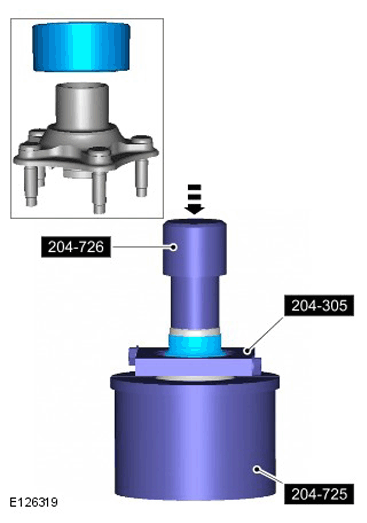

Special Tool(s): 204-305, 204-726, 204-725
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

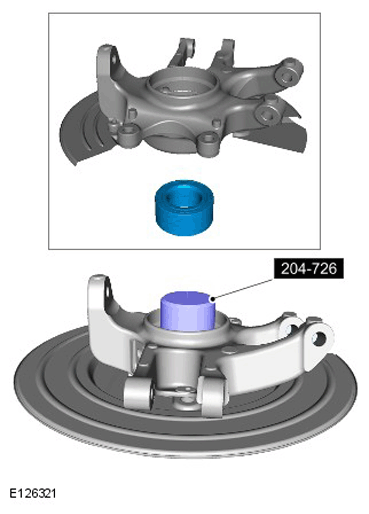

Special Tool(s): 204-726
