Rear Wheel Bearing (G1274507): Installation

NOTE: Make sure correct alignment of the bearing is maintained when installing into the hub carrier.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 204-727A, 204-791
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Make sure the correct alignment of the drive flange is maintained when installing into the hub carrier and bearing assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 204-726, 204-250

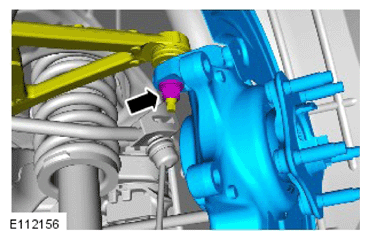

NOTE: Do not tighten at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Install the halfshaft nut finger tight.

NOTE: Do not tighten at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new halfshaft nut.

Renew Part: Rear halfshaft nut Quantity: 1 .
NOTE: Do not tighten at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not tighten at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 6 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten 2 new bolts.

Renew Part: Brake caliper mounting bolt(s) Quantity: 2.

Torque: 103 Nm
Refer to: WHEEL AND TIRE
Lower the vehicle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 96 Nm
NOTE: XJR version only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 48 Nm

Stage 2: 60°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 192 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 63 Nm
CAUTION: Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the halfshaft nut.

Torque: 300 Nm
