Rear Stabilizer Bar (G2178897): Removal

The following step(s) applies to:

All vehicles

1. WARNING: Make sure to support the vehicle with axle stands.

   Raise and support the vehicle.

2. Remove the rear wheels and tires.

   Refer to: WHEEL AND TIRE (G1029140)

3. NOTE: Repeat the step for the other side.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 7 Nm

4. NOTE: Repeat the step for the other side.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 10 Nm

5. NOTE: Repeat the step for the other side.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

6. NOTE: Repeat the step for the other side.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque: 48 Nm

7. NOTE: Repeat the step for the other side.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

8. NOTE: Repeat the step for the other side.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 96 Nm

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 115 Nm

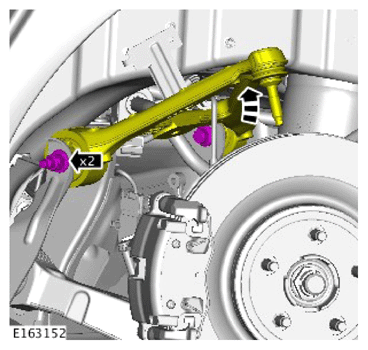

10. NOTE: Move aside for access and secure the arm.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 115 Nm

11. NOTE: RH side only.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    The following step(s) applies to:

    Vehicles with supercharger

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    The following step(s) applies to:

    All vehicles

14. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

15. CAUTION: Only tighten the nuts and bolts when the suspension is at the normal ride height. Failure to follow this instruction may result in damage to the vehicle.
    NOTE: Repeat the step for the other side.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 133 Nm

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 30 Nm

17. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

18. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
    NOTE: Repeat the step for the other side.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

19. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

20. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

21. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

22. NOTE: Do not tighten at this stage.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

23. Repeat the above 4 steps for the other side.
24. NOTE:

    • LH side only.
    • Loosen the bolt, but do not fully remove.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

25. CAUTION: Discard the bolts.
    NOTE: RH side only.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

26. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Check for correct alignment.

27. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

28. NOTE:

    • RH illustration shown, LH is similar.
    • Repeat the above step for the other side.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 133 Nm

29. Fig 1: Bolt Tightening Sequence

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    During installation tighten the bolts in the following sequence.

    Torque

    Bolt 1: 55 Nm

    Bolt 2: 55 Nm

    Bolt 1: 55 Nm

30. NOTE: Repeat the step for the other side.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

31. NOTE: RH side only.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 22 Nm

32. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
