Lower Arm (G1274504): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

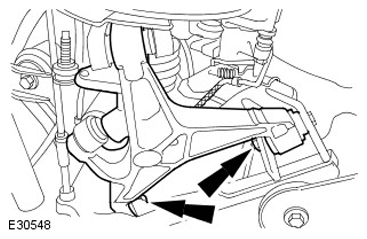

Install the lower arm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure the lower arm to the wheel hub assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten 2 new bolts.

• Tighten the bolts to 103 Nm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

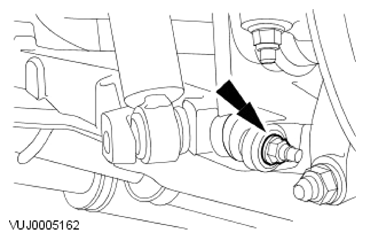

Secure the stabilizer bar link.

• Tighten the nut to 48 Nm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure the spring and damper assembly to the lower arm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten to 192 Nm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten to 192 Nm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten to 133 Nm.
