Shock Absorber And Spring Assembly (G2178898): Disassembly

WARNING: Make sure the shock absorber is secured by fully inserting the locking pin in to the special tool. Failure to follow these instructions may result in personal injury.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the shock absorber and spring assembly.

Refer to: SHOCK ABSORBER AND SPRING ASSEMBLY (G1274519)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

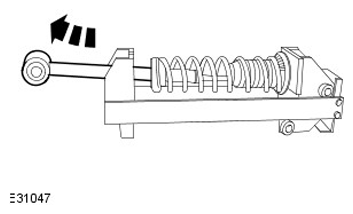

Install the shock absorber and spring assembly to the special tool as shown.
WARNING: AS THE SPRING IS UNDER EXTREME TENSION CARE MUST BE TAKEN AT ALL TIMES. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Clamp the road spring.
NOTE: Remove and discard the retaining nut

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the shock absorber retaining nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the road spring.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the shock absorber.
