Shock Absorber And Spring Assembly (G2178898): Assembly

CAUTION: Make sure the spring ends butt correctly against the spring seats.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

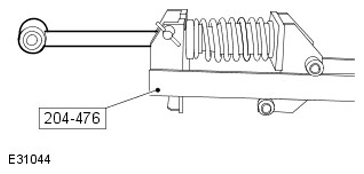

Install the shock absorber and spring assembly to the special tool.
WARNING: AS THE SPRING IS UNDER EXTREME TENSION CARE MUST BE TAKEN AT ALL TIMES. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

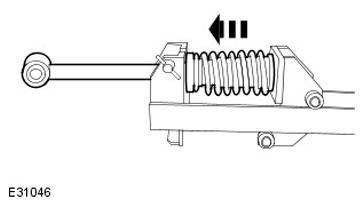

Clamp the road spring.
NOTE: Install a new retaining nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Vehicles without adaptive damping.

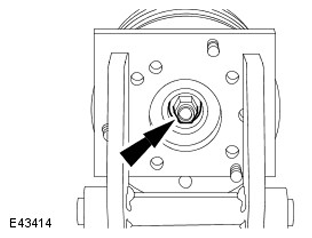

Renew Part: Shock absorber nut Quantity: 1 .

Torque : 50 Nm
NOTE: Install a new retaining nut

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Vehicles with adaptive damping.

Renew Part: Shock absorber nut Quantity: 1 .

Torque : 27 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

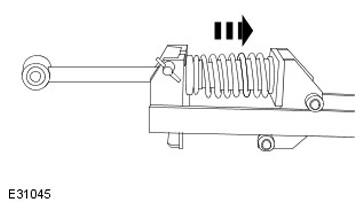

Release the road spring.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the shock absorber and spring assembly from the special tool.
