Component Location - Sheet 3 Of 3

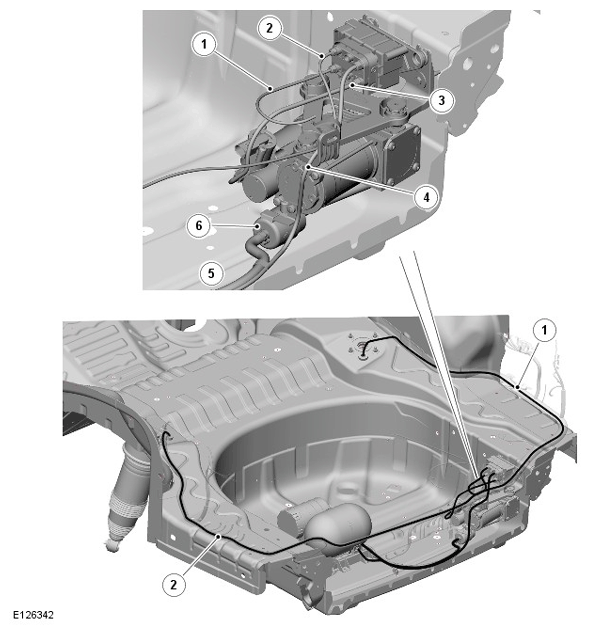

G11283812Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Valve block to right air spring pipe
2 Valve block to left air spring pipe
3 Suspension air supply unit to valve block pipe
4 Air suspension valve block
5 Suspension air supply unit inlet/exhaust pipe
6 Air suspension air Alter
