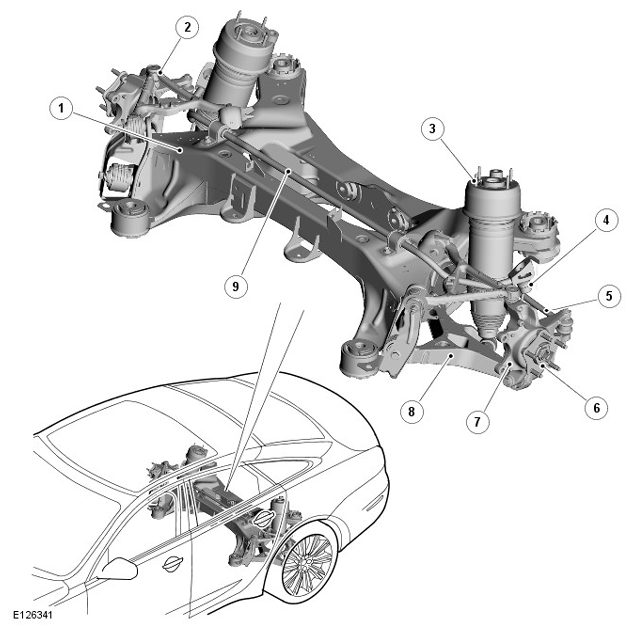

Component Location - Sheet 1 Of 3 -

G11283810Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Rear subframe (reference)
2 Upper control arm
3 Isolator and shock absorber assembly
4 Stabilizer bar link
5 Tie-rod
6 Wheel hub
7 Wheel knuckle
8 Lower control arm
9 Stabilizer bar
