Suspension Air Supply Unit Expansion Chamber : Removal

WARNING: Residual air pressure may be present in the system. Take care when releasing air line connectors.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Using Jaguar Land Rover approved diagnostic equipment, depressurize the air suspension system. Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE
General equipment: Jaguar approved diagnostic tool
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

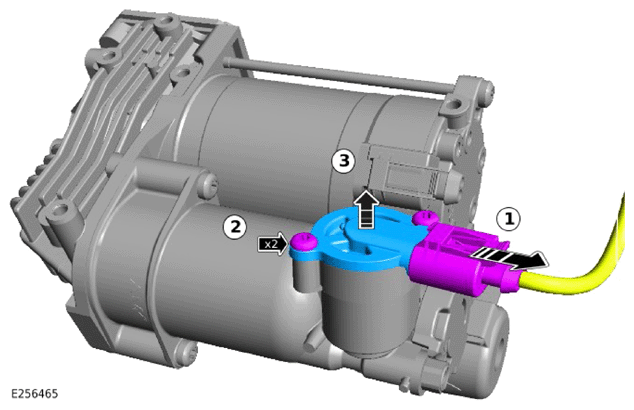

1. Disconnect the electrical connector.
2. Remove the 2 bolts.
3. Remove and discard the suspension air supply unit expansion sensor.
