Rear Suspension Vertical Accelerometer : Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: RIGHT LOADSPACE TRIM PANEL

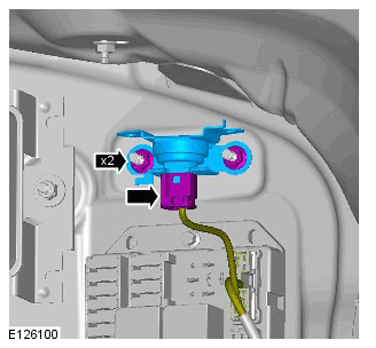

  2. CAUTION: The accelerometer is an extremely delicate component and can easily be rendered unserviceable. Never use an accelerometer which has been dropped or subjected to mistreatment of any type.
    G11284014Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 5 Nm
