Rear Suspension Height Sensor : Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: WHEEL AND TIRE

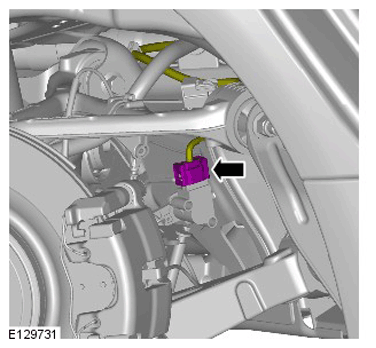

  3. CAUTION:
    • RH illustration shown, LH is similar.
    • Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean.
    G11284011Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

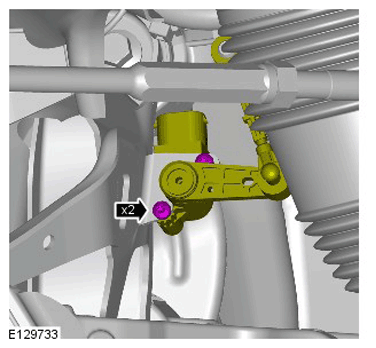

  4. CAUTION: RH illustration shown, LH is similar.
    G11284012Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 4 Nm

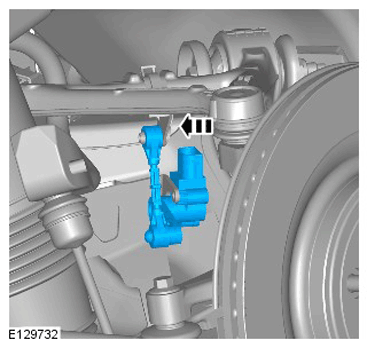

  5. CAUTION: RH illustration shown, LH is similar.
    G11284013Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
