Front Suspension Height Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: WHEEL AND TIRE
  3. CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean.
    NOTE: Left-hand shown, right-hand similar.

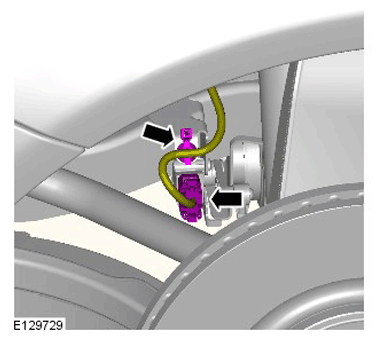

    G11284007Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. NOTE: LH side only.

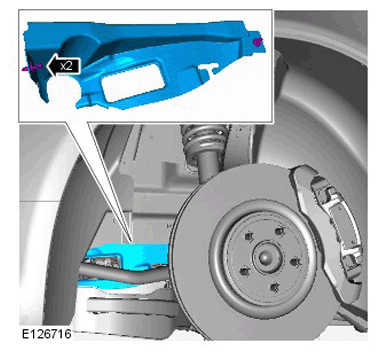

    G11283720Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. NOTE: Left-hand shown, right-hand similar.

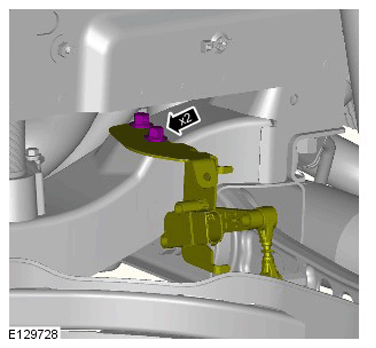

    G11284009Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 20 Nm

  6. NOTE: Left-hand shown, right-hand similar.

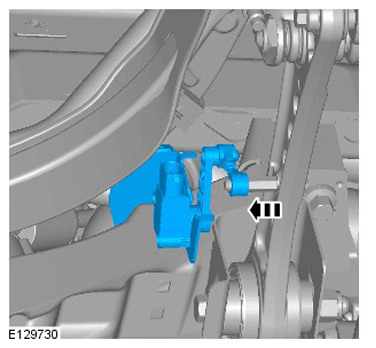

    G11284010Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
