Air Suspension Solenoid Valve Block : Removal

WARNING: The air suspension is pressurised. Make sure dirt or grease does not enter the system. Always wear hand, eye and ear safety standard protection when working on the system.

CAUTION: Do not depressurise the air suspension system before raising the vehicle.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE .

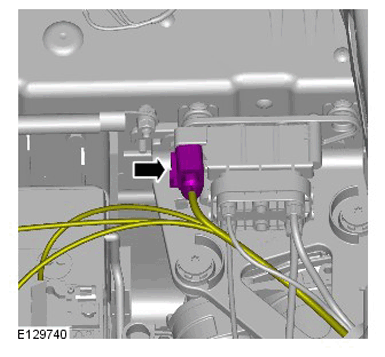

Refer to: RIGHT LOADSPACE TRIM PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

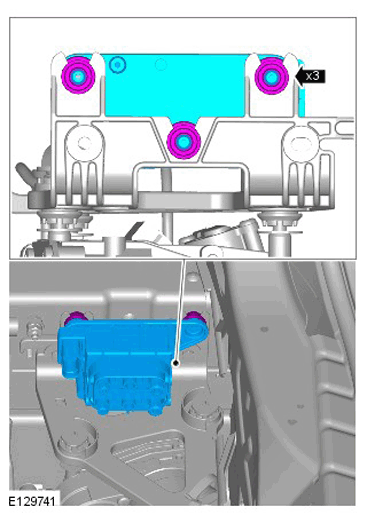

CAUTION: Using a suitable blanking plug, blank off the end of the air pipe to prevent dirt ingress.

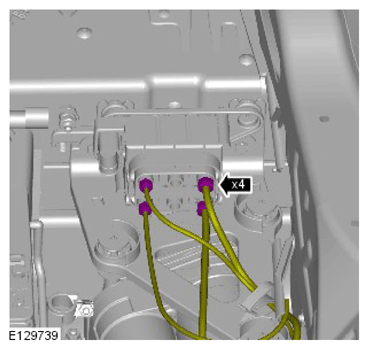

NOTE: Note the orientation of the colour coded air lines prior to removal

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Discard the air line connectors.

Refer to: AIR LINE CONNECTOR

Torque

4 mm pipe: 2 Nm

6 mm pipe: 3.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
