Air Suspension Reservoir: Removal

WARNING: The air suspension is pressurised. Make sure dirt or grease does not enter the system. Always wear hand, eye and ear safety standard protection when working on the system.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE

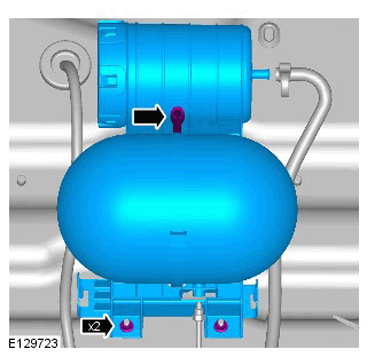

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

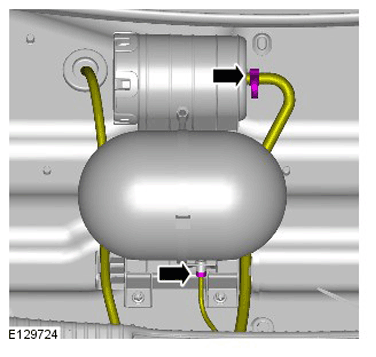

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Loosen the pipes no more than one full turn to allow the stored air pressure to vent for a minimum of three seconds.

CAUTION: Using a suitable blanking plug, blank off the end of the air pipe to prevent dirt ingress.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A new air line connector must be installed.

Refer to: AIR LINE CONNECTOR

Torque : 3.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
