Air Suspension Compressor : Removal

WARNING: The air suspension is pressurised. Make sure dirt or grease does not enter the system. Always wear hand, eye and ear safety standard protection when working on the system.

CAUTION: Do not depressurise the air suspension system before raising the vehicle.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: AIR SUSPENSION SYSTEM DEPRESSURIZE AND PRESSURIZE
Refer to: AIR SUSPENSION SOLENOID VALVE BLOCK

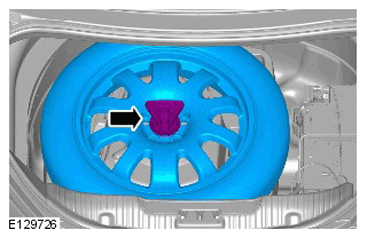

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

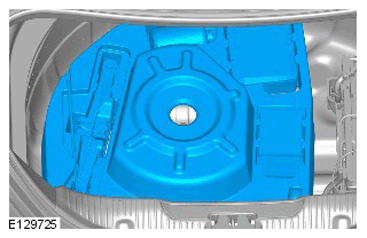

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Using a suitable blanking plug, blank off the end of the air pipe to prevent dirt ingress.

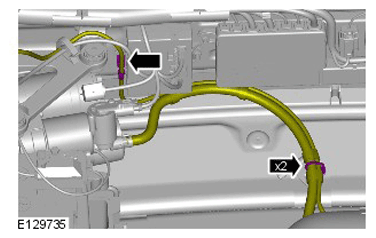

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A new air line connector must be installed.

Refer to: AIR LINE CONNECTOR

Torque : 3.5 Nm

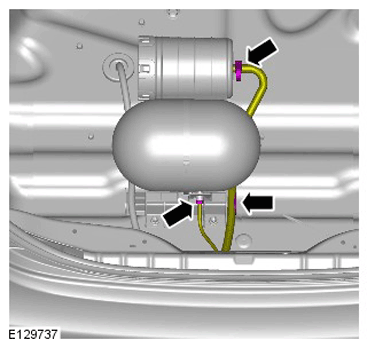

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Using a suitable blanking plug, blank off the end of the air pipe to prevent dirt ingress.

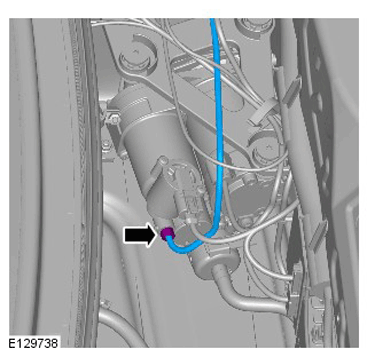

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A new air line connector must be installed.

Refer to: AIR LINE CONNECTOR

Torque: 3.5 Nm

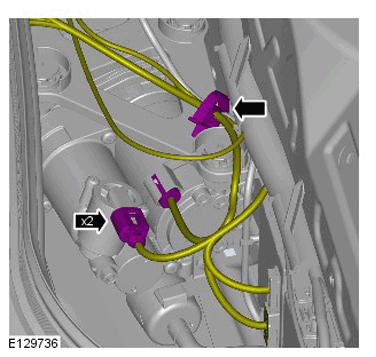

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

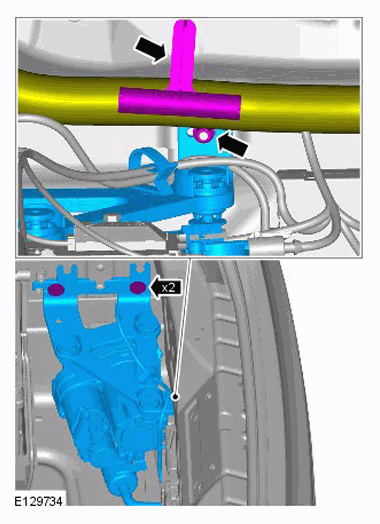

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
