Special Tool(S)
204-484
Ride height gauge.
CAUTION:
- Make sure the wheels and tires, tie rod ends, suspension joints and wheel bearings are free from damage, wear and free play.
- Make sure there are no heavy objects in the vehicle.
- The ride height must be measured with the vehicle weight supported by the suspension.
- With the engine running and all vehicle doors closed, make sure the air suspension is functioning and the vehicle height can be raised and lowered using the air suspension switch.
- Drive the vehicle on to a flat, level surface.
- Make sure the steering is in the straight ahead position.
NOTE:
This procedure must be carried out after replacement of the air suspension control module, removal or replacement of a height sensor, removal or replacement of the front or rear suspension arms, replacement of body panels incorporating suspension fixing points.
-
CAUTION: Make sure the vehicle is not moved once it has been positioned to take measurements.
Position the vehicle on a flat level surface.
-
NOTE:
- Make sure the fender splash shields are correctly fitted.

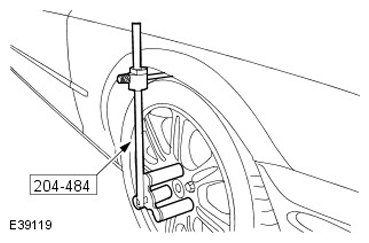

- Fit special tool 204-484 as illustrated.
- Make sure the special tool is square to the wheel face with the measuring rod in a vertical position.
- Take the measurement from the top edge of the slider on the special tool.
Using the Jaguar approved diagnostic system carry out the ride height adjustments.
