Air Line Connector: Activation

CAUTION:

Make sure that the component is clean and free from foreign material and lubricant.
Make sure the correct size and type of air line connector is installed.
Do not reuse the air line connector. Always install a new air line connector every time it is released.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

CAUTION: Using a suitable tool, remove the collet as illustrated. Attempting to slide the collet from the air line will result in damage.
Make sure not to damage the airline.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

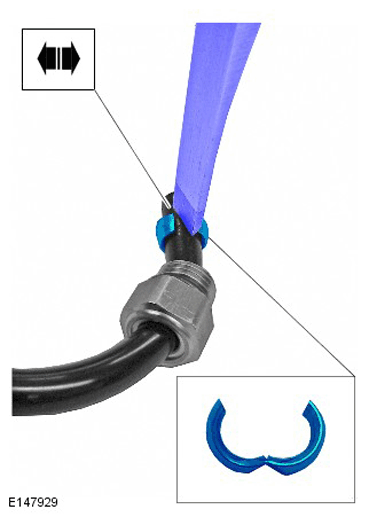

Use a suitable tool to snap the air line connector collet off the air line.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

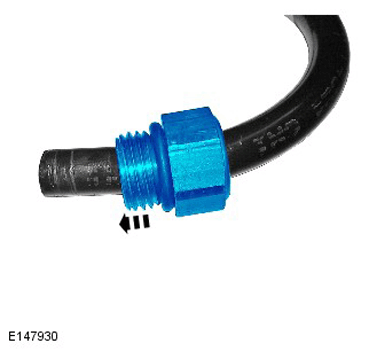

Remove the air line connector from the air line.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

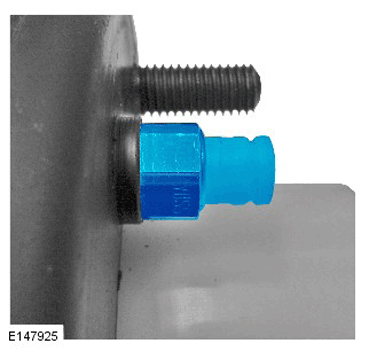

Install and fully tighten the new air line connector to the correct component's torque.

Refer to: SPECIFICATIONS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

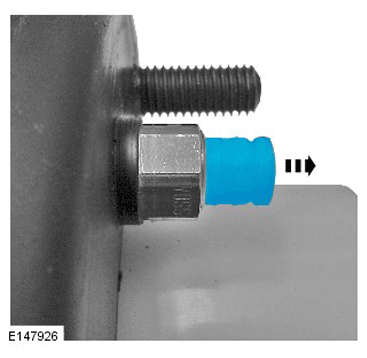

Remove the air line connector cap from the air line connector.
CAUTION: Make sure that the component is clean and free from foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

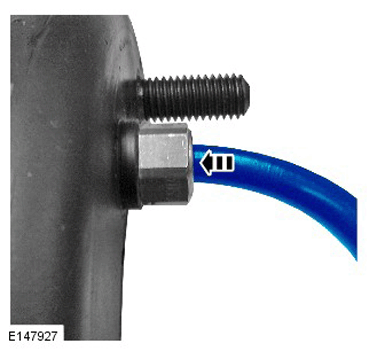

Fully insert the air line into the air line connector.
