Ignition Coil-On-Plug: Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: ENGINE COVER - V8 S/C 5.0L PETROL .

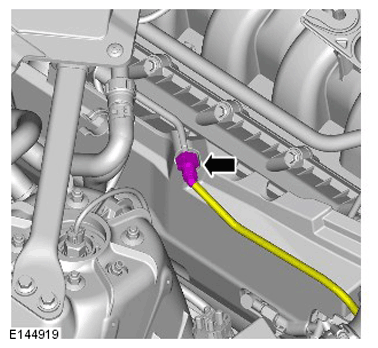

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

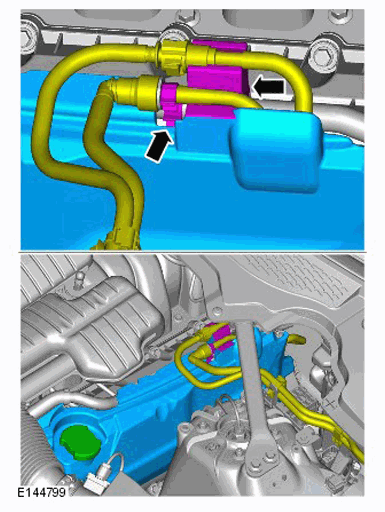

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm

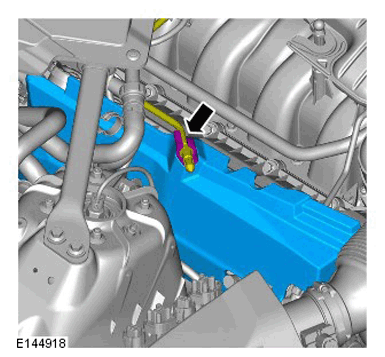

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

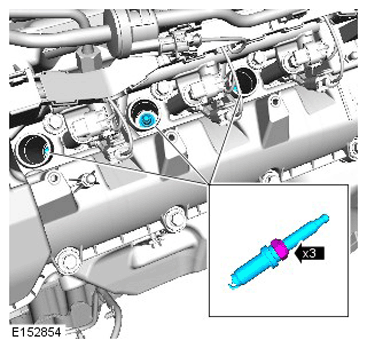

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: LH illustration shown, RH is similar.

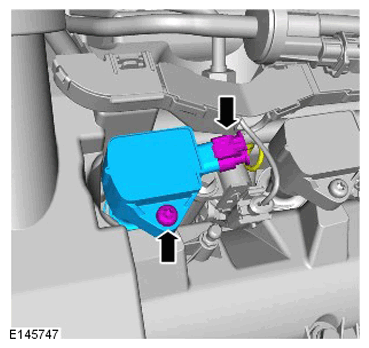

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7 Nm
NOTE:
- The step must be carried out on both sides.
- LH illustration shown, RH is similar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 20 Nm
