COMPONENT LOCATION - 3.0 L V6 S/C Petrol engine

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

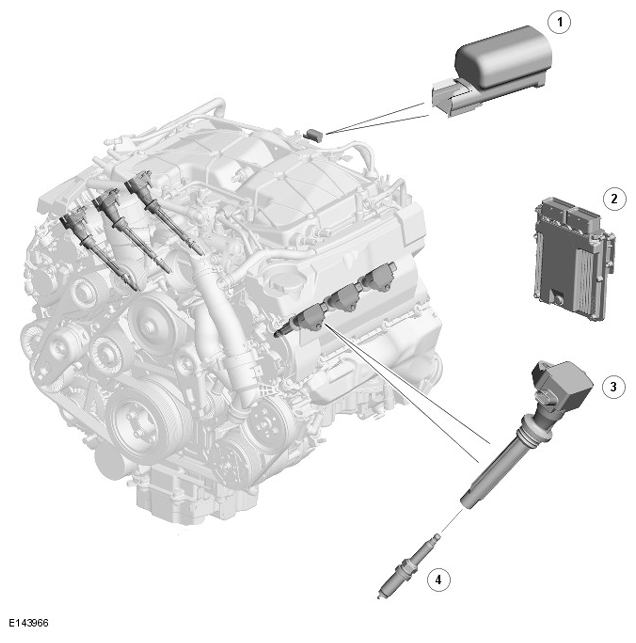

G11293840Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Radio Frequency Interference (RFI) suppressor
2 Engine Control Module (ECM)
3 Ignition coil (6 off)
4 Spark plug (6 off)
