Thermostat Housing (G1557005): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816935)
  3. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR (G1549760)
  4. Refer to: LEFT AIR CLEANER OUTLET PIPE (G1549758)
  5. Refer to: LEFT AIR CLEANER (G1549756)
  6. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11287876Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11285417Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  8. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

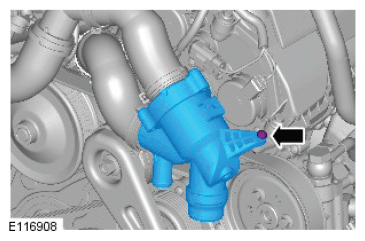

    G11287878Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

  9. NOTE:
    • Some variation in the illustrations may occur, but the essential information is always correct.
    • The retaining clips cannot be removed from the pipe.

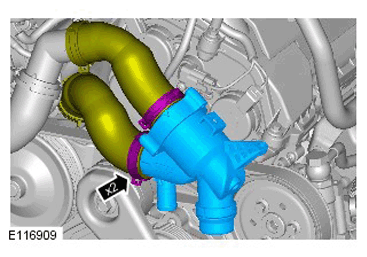

    G11284662Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
