Radiator (G1557004): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: ELECTRIC COOLING FAN AND SHROUD (G1557001)
  3. Refer to: RADIATOR (G1557004)

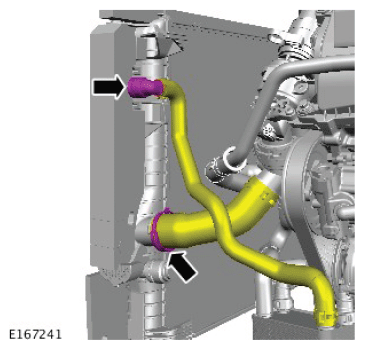

  4. G11287980Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

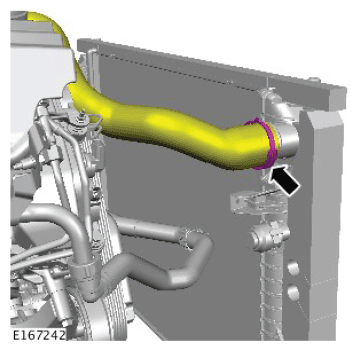

  5. G11287981Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. NOTE: Support the air conditioning (A/C) condenser.

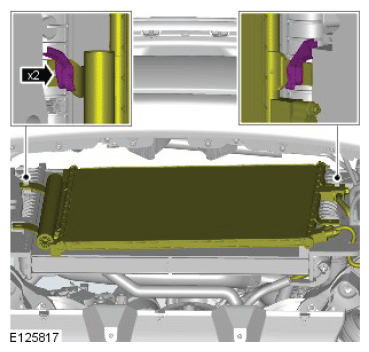

    G11287866Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. NOTE: Always protect the cooling pack elements to prevent accidental damage.

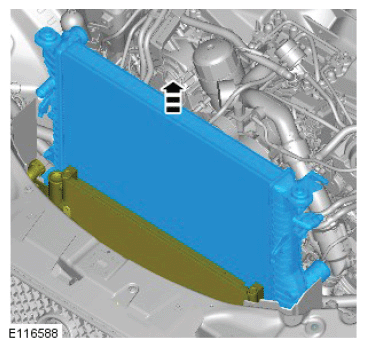

    G11287867Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
