Electric Thermostat (G1772758): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816935)
Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR (G1549760)
Refer to: LEFT AIR CLEANER OUTLET PIPE (G1549758)
Refer to: LEFT AIR CLEANER (G1549756)

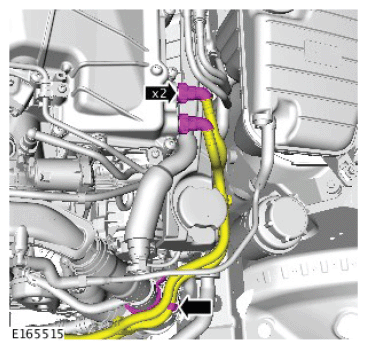

CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
CAUTION: Be prepared to collect escaping coolant.

NOTE: The retaining clips cannot be removed from the pipe.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
