Electric Cooling Fan And Shroud (G1557001): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: RADIATOR SPLASH SHIELD
  3. Refer to: ENGINE UNDERSHIELD
  4. Refer to: LEFT AIR CLEANER (G1549756)
  5. Refer to: RIGHT AIR CLEANER (G1549757)
  6. Refer to: LEFT AIR CLEANER OUTLET PIPE (G1549758)
  7. Refer to: RIGHT AIR CLEANER OUTLET PIPE (G1549759)
  8. G11285542Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. G11285543Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  10. G11285544Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 7 Nm

  11. G11285545Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

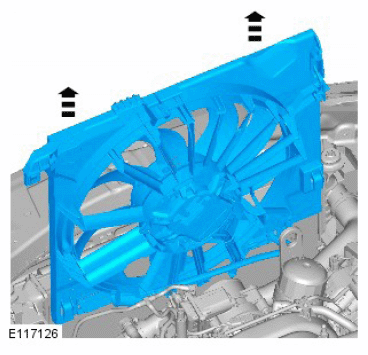

  12. G11287832Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
