Coolant Expansion Tank (G1269155): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING:
- Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
- Be prepared to collect escaping fluid.
CAUTION:
- Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure
- Correct installation of the coolant expansion tank cap can be obtained by tightening the cap until 3 audible clicks are heard.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Using a syringe, remove the cooling fluid from the expansion tank.

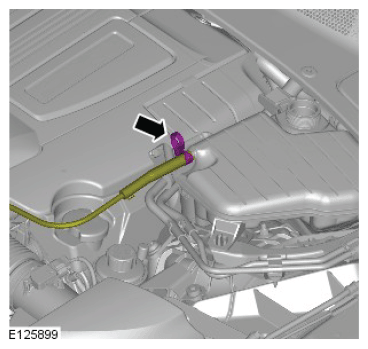

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

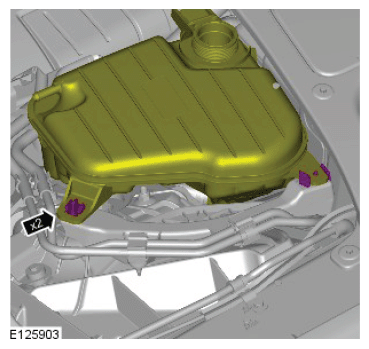

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

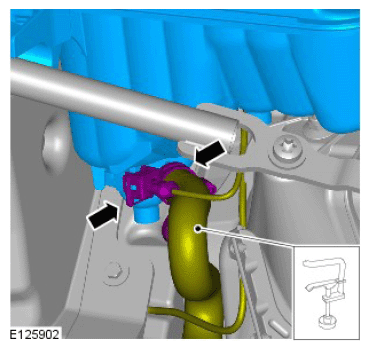

CAUTION: Be prepared to collect escaping coolant.

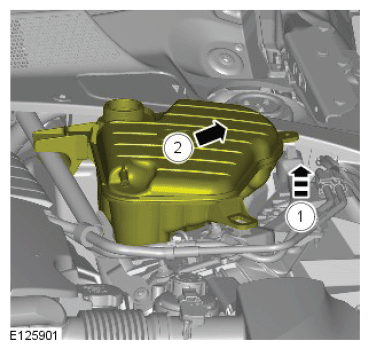

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
