Cooling System Partial Draining And Vacuum Filling (G1816935): Draining
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Since injury such as scalding could be caused by escaping steam or coolant, do not remove the filler cap from the coolant expansion tank while the system is hot.
CAUTION:
- The engine cooling system must be maintained with the correct concentration and type of antifreeze solution to prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the engine.
- Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
-
WARNING:

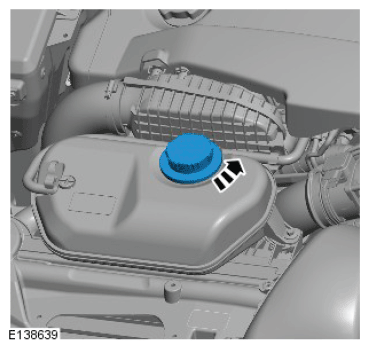

- Release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn. Cover the expansion tank cap with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
- Be prepared to collect escaping fluids.
- Since injury such as scalding could be caused by escaping steam or coolant, make sure the vehicle cooling system is cool prior to carrying out this procedure.
- Refer to: RADIATOR SPLASH SHIELD
-

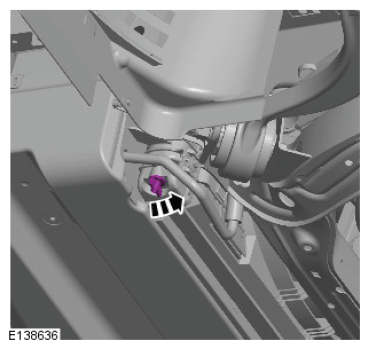

CAUTION: Be prepared to collect escaping fluids.NOTE:
- Collect the coolant in a clean container and reuse.
- If equipped.
-
CAUTION: Be prepared to collect escaping fluids.NOTE:
- Collect the coolant in a clean container and reuse.
- If equipped.
