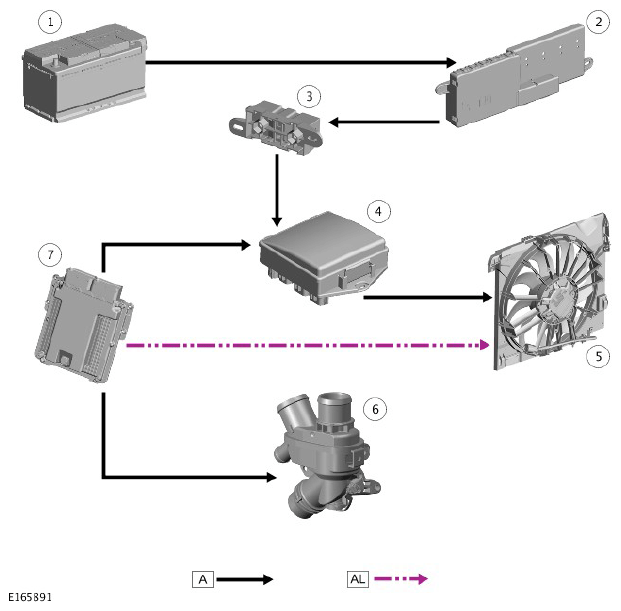

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; AL
= PWM (Pulse Width Modulation).
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
Battery Junction Box (BJB) |
| 3 |
Megafuse |
| 4 |
Engine Junction Box (EJB) |
| 5 |
Electric cooling fan |
| 6 |
Electric thermostat |
| 7 |
Engine Control Module (ECM) |
