Component Location - Sheet 3 Of 4 - Auxiliary Radiator (Where Fitted)

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

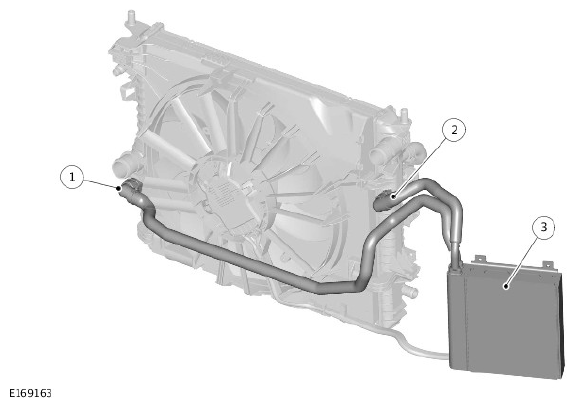

G11287911Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Coolant supply hose connection
2 Coolant return hose connection
3 Auxiliary radiator
