Right Variable Valve Timing Oil Control Solenoid (G1780789): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: THERMOSTAT HOUSING (G1557005)

    Refer to: ELECTRIC THERMOSTAT (G1772758)

  3. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11293331Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11293332Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

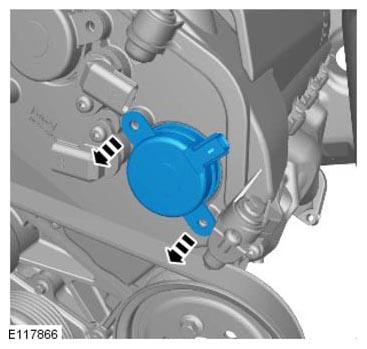

  5. CAUTION: Evenly and progressively, remove the VVT units from each side.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11293333Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
