Post Catalyst Heated Oxygen Sensor (G1557451): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Left-hand shown, right-hand similar.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.

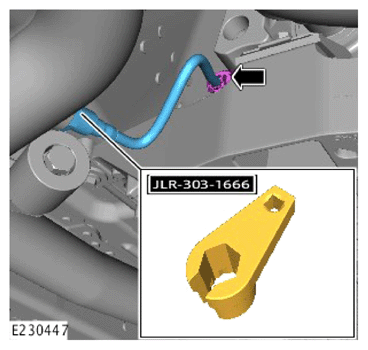

    G14018453Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool, remove the Heated Oxygen Sensor (HO2S).

    Special Tool(s): JLR-303-1666

    Torque  : 48 Nm
