Mass Air Flow Sensor (G1550201): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

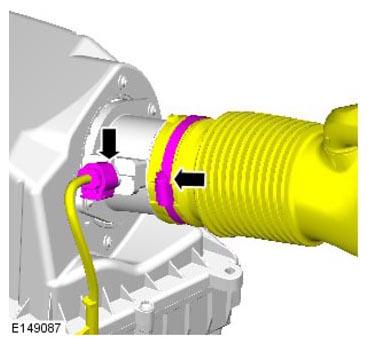

  1. NOTE: Right-hand shown, left-hand similar.
    G11291502Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

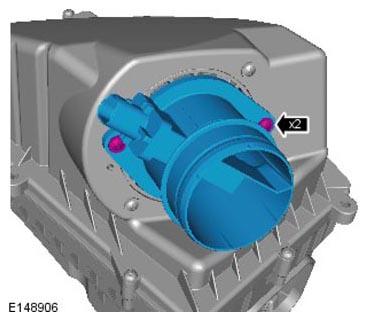

  2. G11291503Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 1.6 Nm

  3. CAUTION: Make sure that a new component is installed.
    G11291504Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
