Manifold Absolute Pressure Sensor (G1550200): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: ENGINE COVER - V8 S/C 5.0L PETROL
  2. Refer to: COWL VENT SCREEN

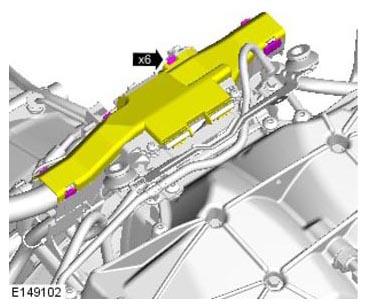

  3. G11293128Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

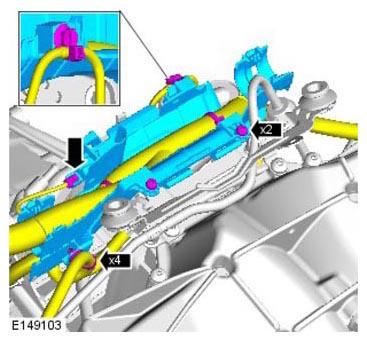

  4. G11293129Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

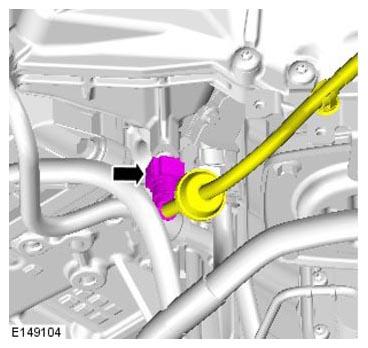

  5. G11293131Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

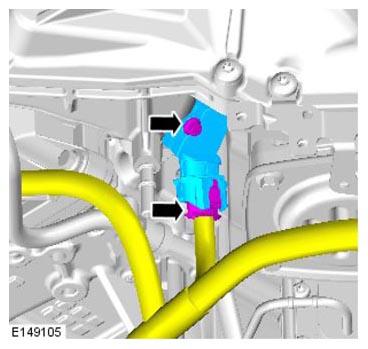

  6. G11291501Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 5 Nm
