Left Mid Catalyst Heated Oxygen Sensor (G1557450): Removal

WARNING: This page is about a different car, the 2019 Jaguar XJ and 2018 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Observe due care when working near a hot exhaust system.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. G11288366Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the air deflector.

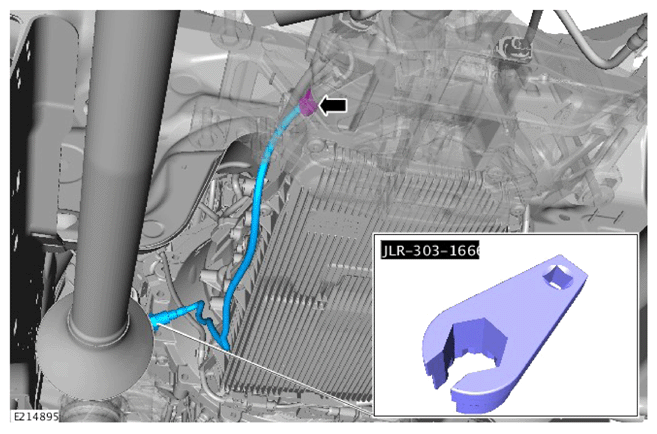

  3. CAUTION:
    • Make sure the HO2S wiring harness is not twisted more than 180 degrees and is not in contact with the exhaust.
    • If accidentally dropped or knocked install a new sensor.
    • Make sure that the mating faces are clean and free of foreign material.
    G14018433Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
